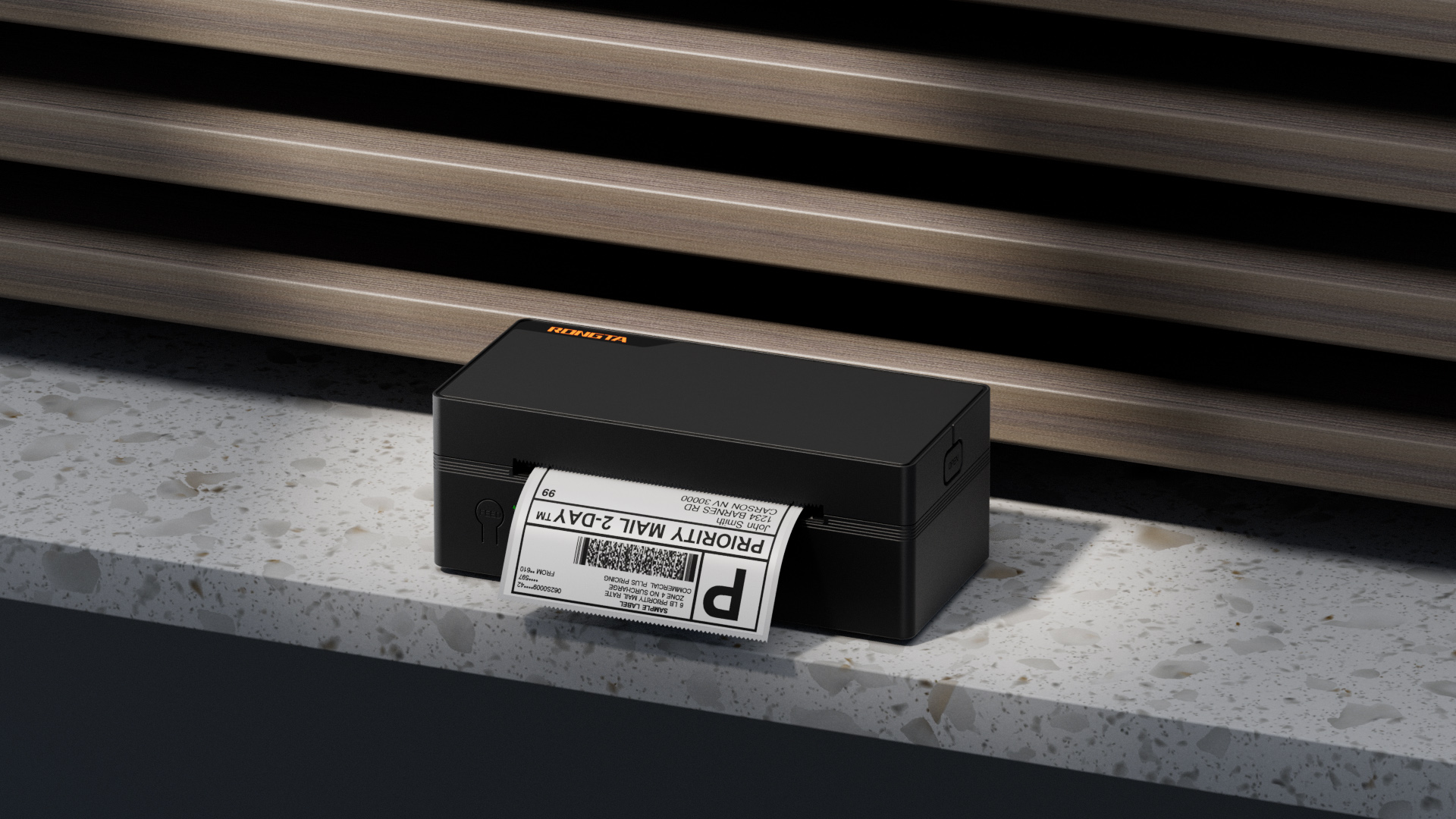

RP425C 4"

电子面单打印机

方寸之间  从容快打

身材也能抗大单量

无纸仓设计，，，重量仅0.57kg

适配多种尺寸标签

最大支持4''标签，，电子面单、、标签打印，，，一机通用

9

快递物流

10

商超零售

11

仓储管理

12

餐饮奶茶

智能设计，，省心省力

绿色灯光闪烁，，，连续报警3声即缺纸提醒
首张自动回退，，，标签不浪费


支持Bartender软件

配备PC端编辑软件

支持电脑端、、移动端打印

USB+蓝牙接口，，支持电脑端、、手机、、、、ipads打印

    Technical Specifications

    Product Specifications Product Specifications
    project parameter
    Print Printing Method Thermal transfer/thermal
    Resolution 203dpi
    Maximum Print Width 4.09''(104mm)
    Maximum Printing Speed 6 ips(152mm/s)
    Print Length 0.79''-110''(10-2794mm)
    Sensor Seam mark detection, black mark detection, paper shortage detection, ribbon end detection, cover opening detection, head temperature detection
    Media Type Coated paper, matt silver paper, wash label, cardboard (hangtag), price tag paper, continuous paper, black label paper, folding paper (rear feed)
    Width (label + backing paper) 0.79''-4.72''(20-120mm)
    Thickness (label + backing paper) 0.0023''-0.0098''(0.06mm~0.25mm)
    Maximum Paper Roll Diameter φ5''(φ127mm(MAX)）
    Reel Inner Diameter φ1''(φ24mm(MIN))
    Carbon Ribbon Carbon Ribbon Outer Diameter φ2.76''(φ70mm(MAX))
    Ribbon Length 11.81''(300m)
    Ribbon Width 1.57''-4.33''(40-110mm)
    Ribbon Core Inner Diameter φ1''(φ25.4mm(MIN))
    Paper Tearing Method  With cutter (full cut)
    Processor 32-bit ARM MCU
    Storage RAM 16MB
    FLASH 8MB
    Function Button Rocker switch, Feed key, Paper bin cover opening key
    Indicator Lights have
    Buzzer Buzzer tone
    Display /
    Other /
    Communication Interface USB+Ethernet port+Serial port optional: Bluetooth, WIFI
    Programming Language TSPL+ZPL
    Built-in Fonts ASCl Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
    GB18030: 24×24
    Code Page Extended Character Table CP437,CP850,CP852,CP860,CP863,CP865,CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
    Barcode 1D Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST
    2D QRCODE, PDF417, Maxicode, DataMatrix, Aztec, Codablock, Code 49, MicroPDF
    Software Drive XP, Win7, Win8, Win10, Win11, Linux, MacOS
    SDK androids, ioses, Windows
    Label Design BarTender barcode label editing software (PC), Bluetooth version: RT ELabel APP (ioses & androids)
    Power Adapter Input: AC 100-240V, 50/60Hz
    Output: DC 24V/2.5A
    Environmental Parameters Work Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
    Storage Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
    Physical Parameters Dimensions  223x168.5x305.1
    Weight TBD
    Accessories Standard ■Power adapter■Power cord■USB cable■Quick installation guide■Carbon ribbon + paper core■Cutter (full cut)
    Optional ■Serial port cable ■External paper holder A/B
